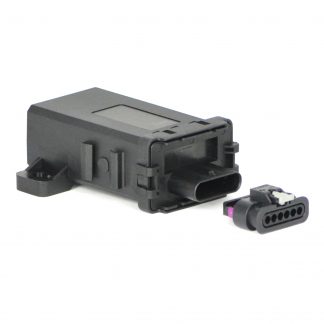

Lightspeed Waterproof Feather IOT Project Box Kit

$37.50$799.99

MACSBOOST Adafruit Feather compatible IOT waterproof and weatherproof electronics enclosure.  Includes a feather break out board and 6 pin weatherproof connector.

SKU: MB-IOT-BOX Categories: ,

Description

** FREE SHIPPING FOR THIS PRODUCT IN CONTINENTAL USA**

A Waterproof IOT Adafruit Feather compatible enclosure with connector and feather breakout PCB.  Bring IOT outdoors to your complex and harsh environment!

Includes:

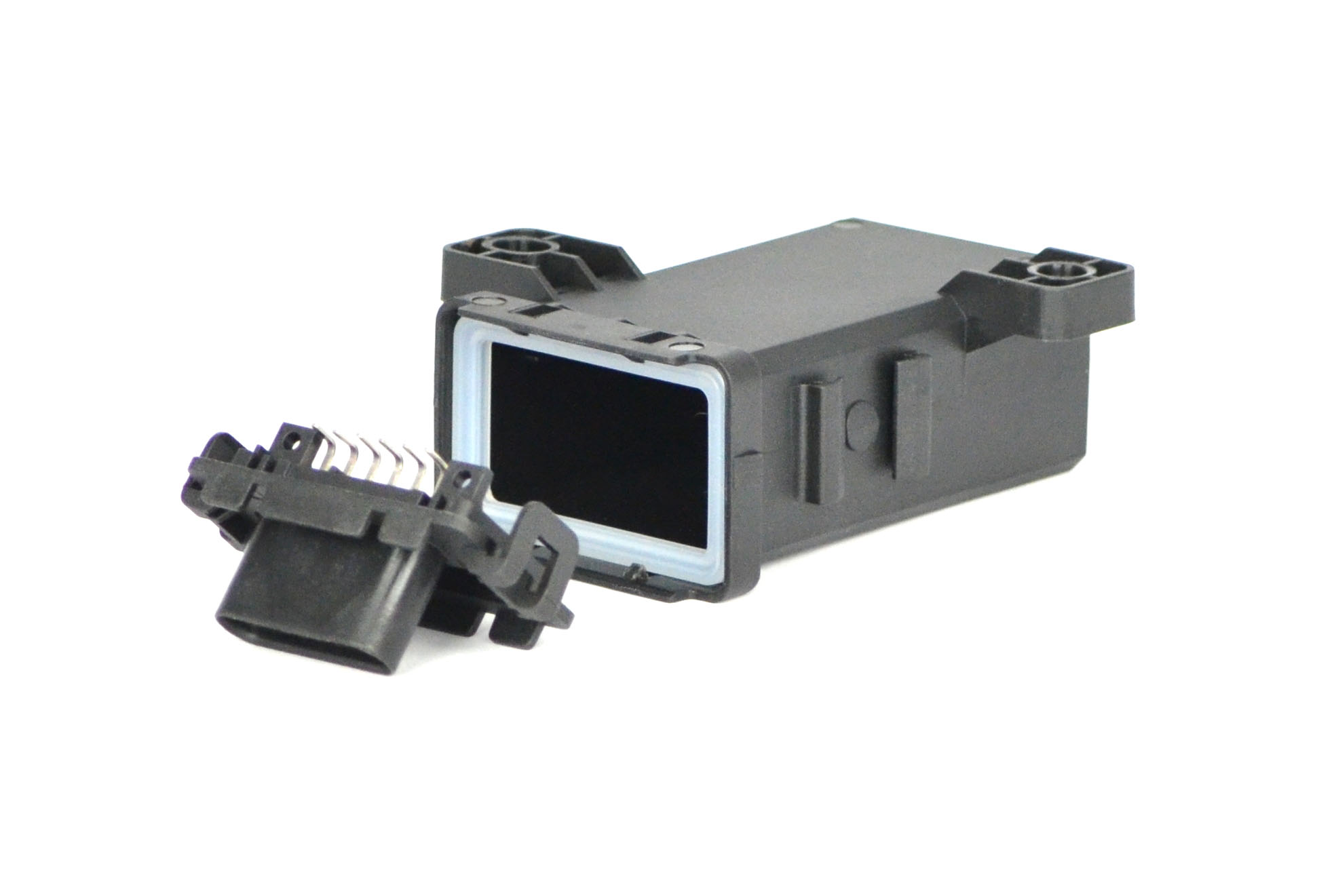

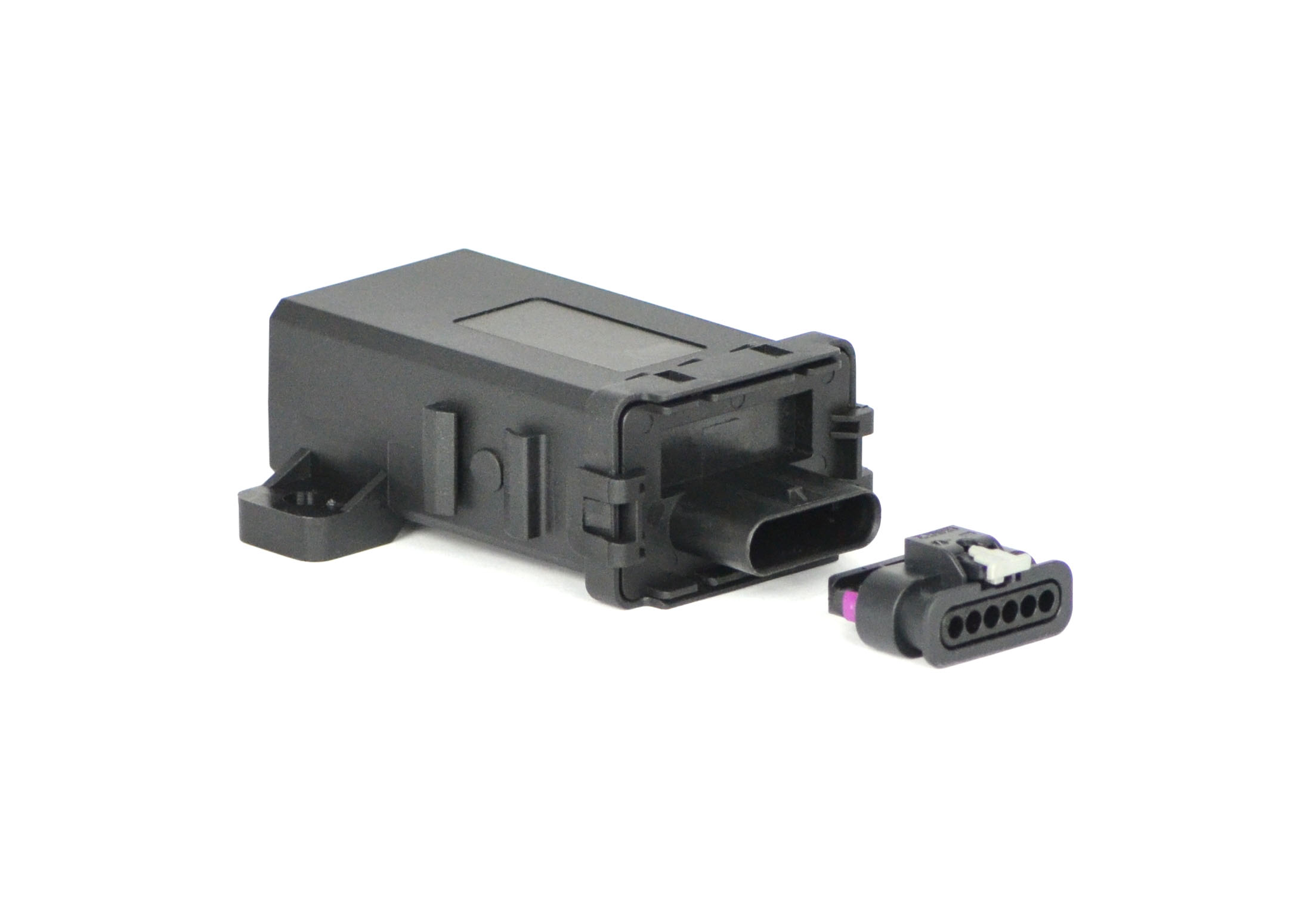

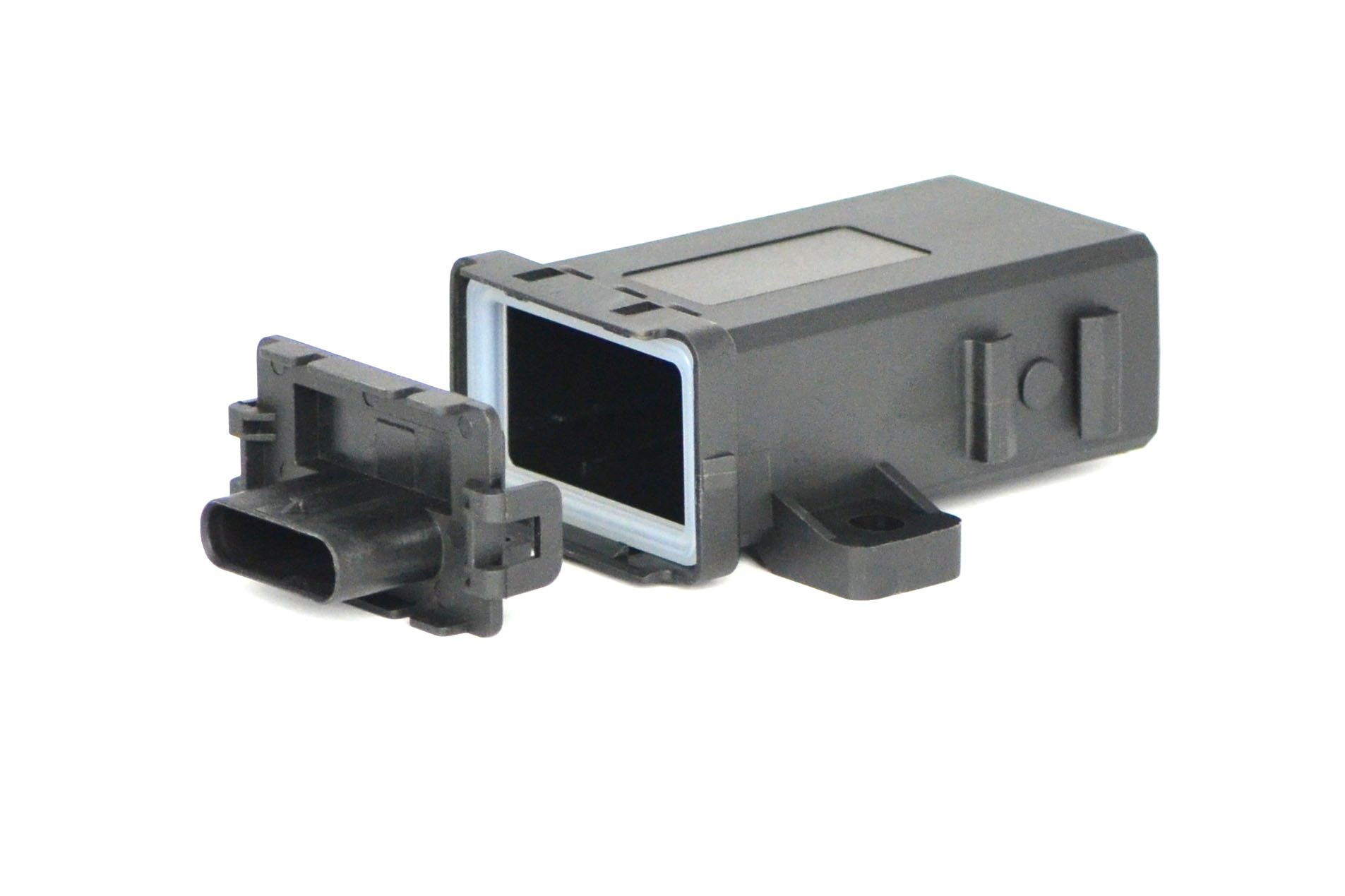

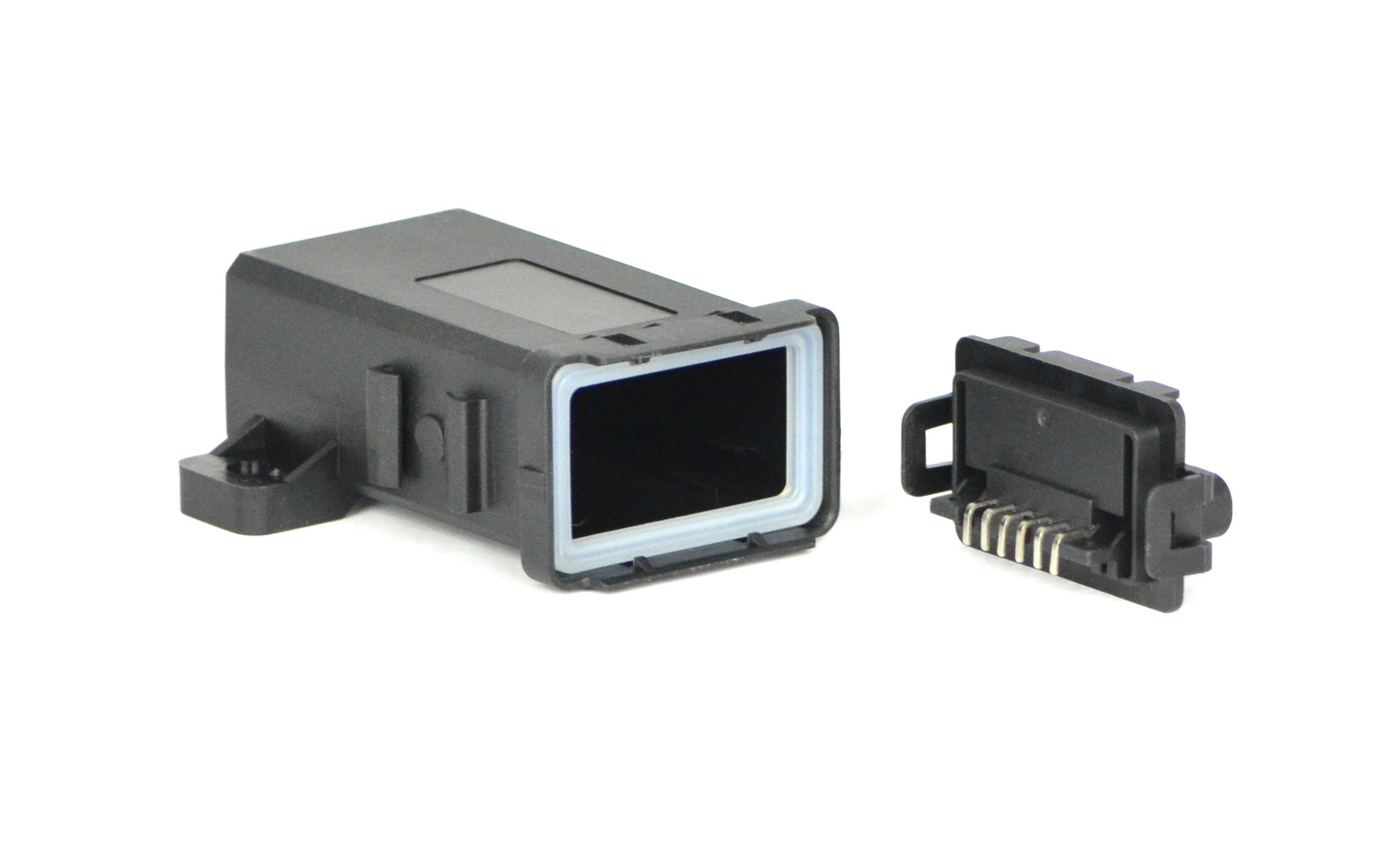

Waterproof IOT enclosure with 6 pin connector top
Silicone gasket
6 pin TE automotive sealed connector kit with pins and seals.

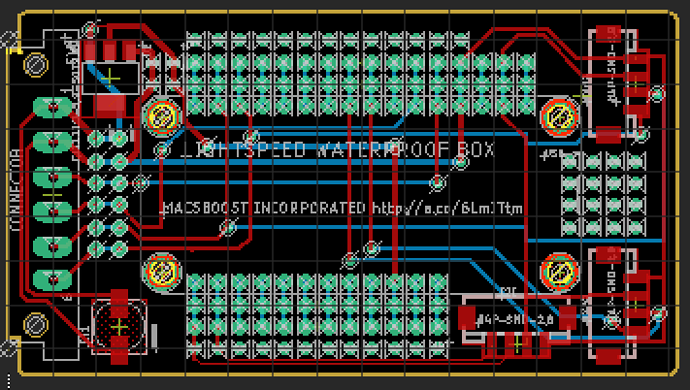

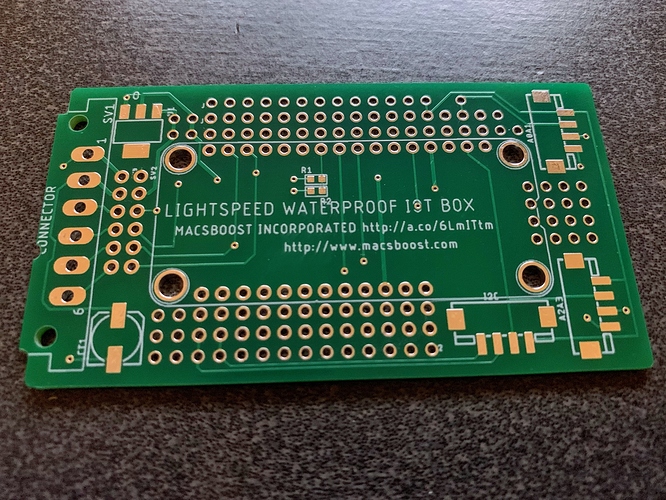

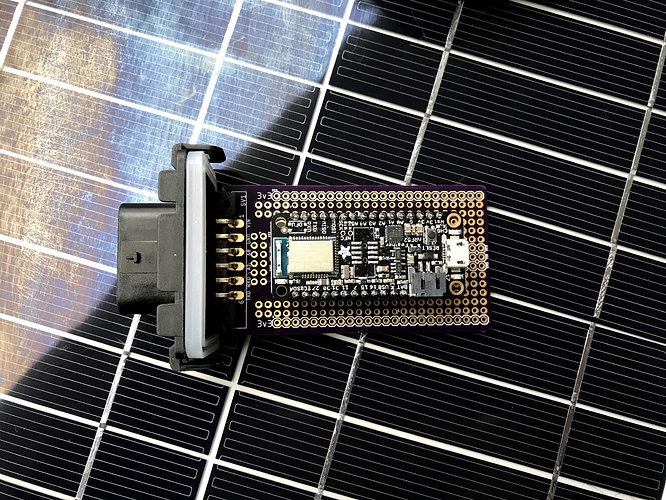

Bare Adafruit Feather/Grove breakout PCB (no connectors populated) (also fits particle argon/boron LTE cellular boards)

Features:
IP67 waterproof. NEMA 4X. ABS+PC automotive plastic construction. Clear silicone rubber gasket Suitable for waterproof mounting of electronics projects. Snap on top. Large enough for a particle photon, particle electron. particle boron, particle xenon, Particle argon, adafruit trinket, esp8266, esp32, raspberry pi zero, teensy, arduino mini, arduino nano, adafruit feather. Plenty of room for one or two 18650 batteries, prismatic lithium battery 9v battery or 14500 cells.

Inside dimensions 42mmx24mmx77mm
Outside dimensions 58mmx35mmx105mm (plus mounting ears)
Mating connector is TE 1-1718646-1
sockets : 7-1452665-1
seals: 967067-2

Eagle library on github https://github.com/macsboost/lightspeediotbox.git NOT SUITABLE FOR A STANDARD SIZED ARDUINO OR RASPBERRY PI MODEL A OR B. OK for the raspberry pi Zero family.

The pcb is bare and you will need to supply your own SMT grove connectors.

3x Grove connectors:
I2c
A0,A1
A2,A3

6 pin waterproof connector:
Pin,Feather
1,USB Power +
2,GND
3,A4
4,A5
5,RX (serial)
6,TX (Serial)

pads are provided for an input filter capacitor and voltage regulator, but they are not populated.  A trace must be cut if you add the regulator.

Please contact us for quantity discounts or to talk about your weatherproof IOT project case needs.

Need 1000? typically a 3-4 week delivery  Contact us for a quote!

[email protected]
