KAWASAKI Jet Ski Fuel Pickup Gauge Compatible

Description

Congratulations, you discovered the overengineered MACSBOOST kawasaki jet ski fuel pickup.  It is the ultimate fuel pickup and completely customizable and configurable for your jet ski application.  This is the BEST way to add a fuel sender to your chicken.

This pickup was designed with the Kawasaki SC 650 Jet ski, “superchicken” in mind for adding a fuel sender without ANY modifications.

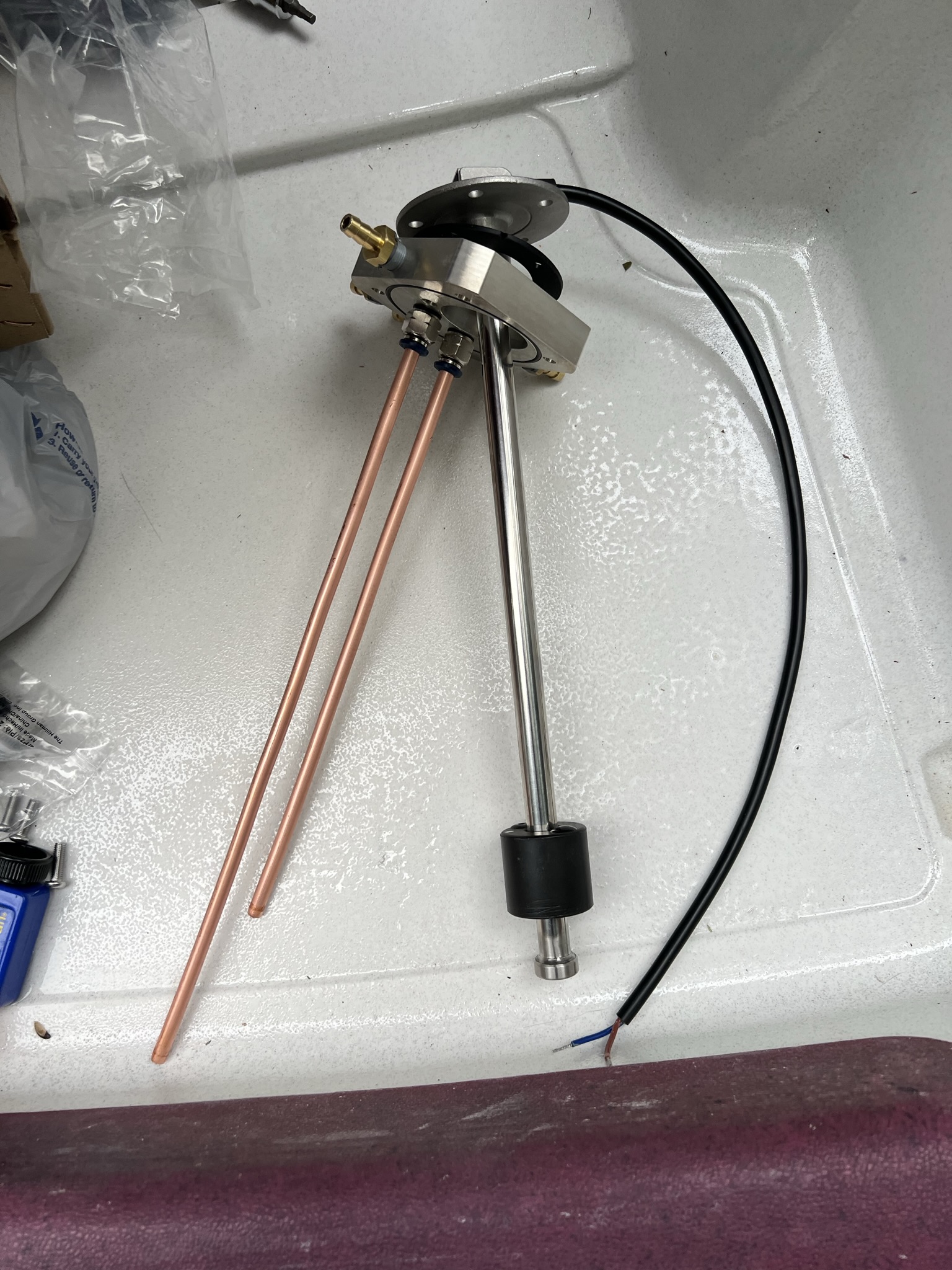

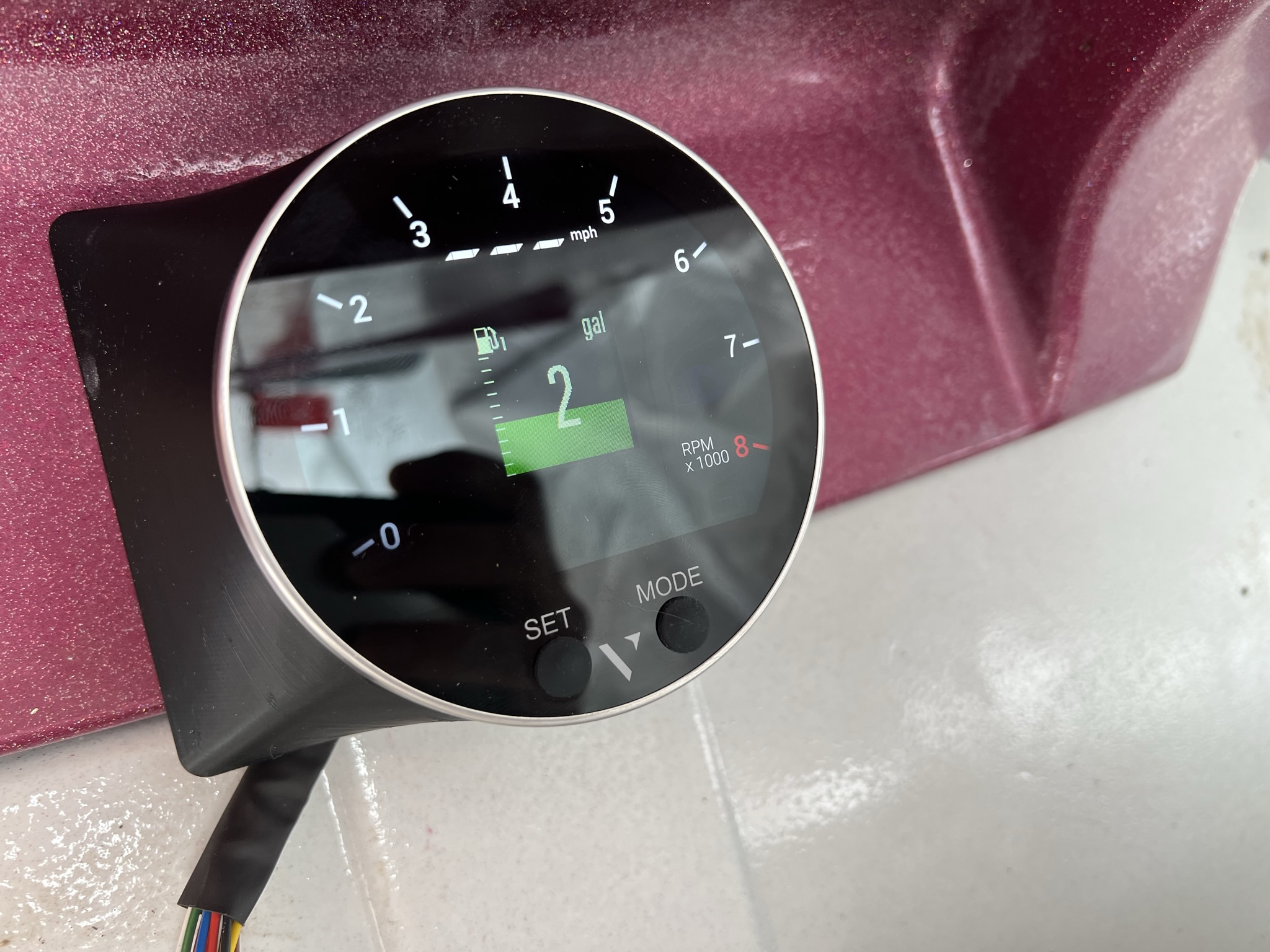

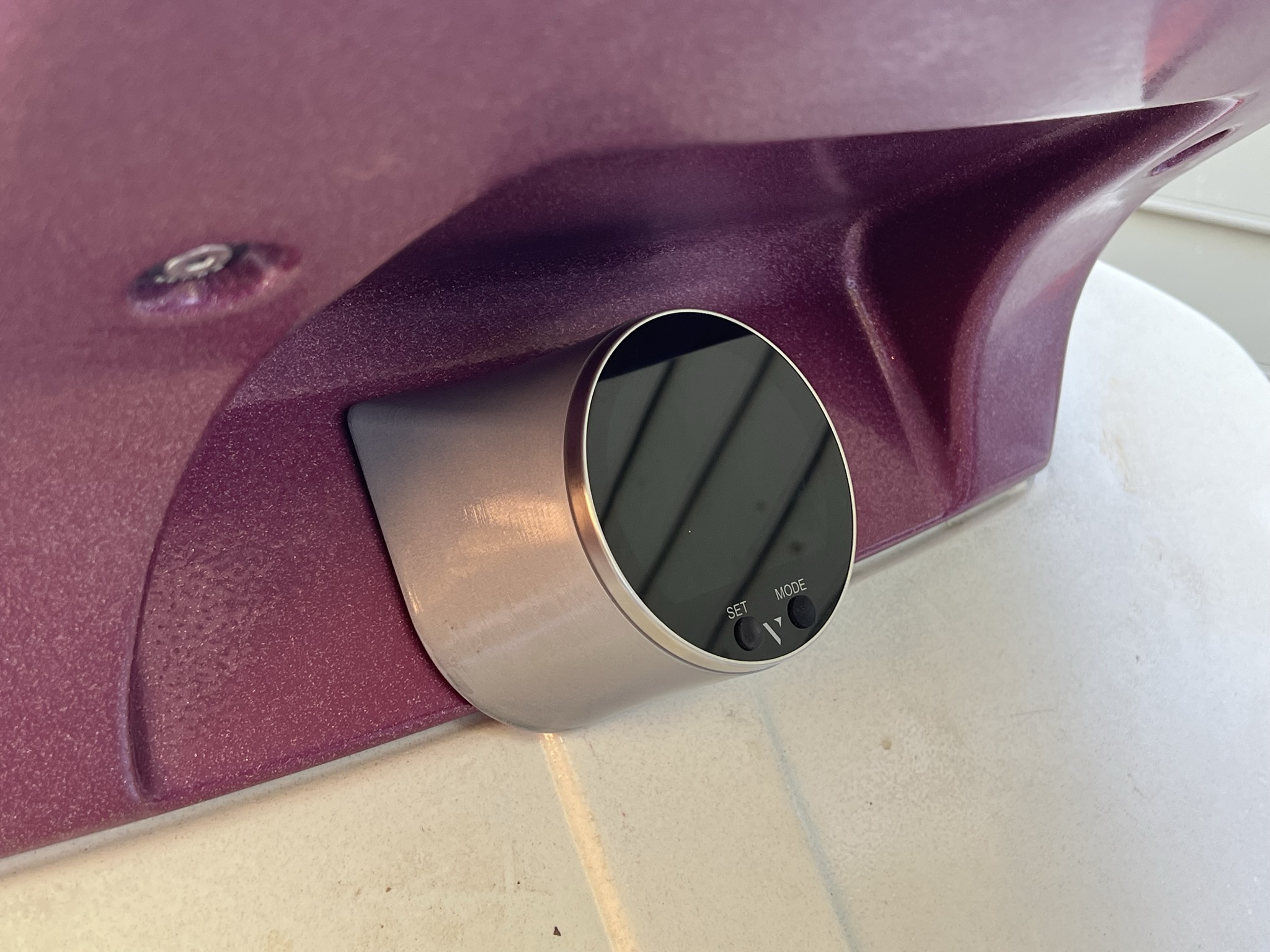

It allows for adding a standard float type fuel sender (12″ for the superchicken recommended, not included)

click here for an example compatible 12″ gauge and sender on amazon

The Chicken does not have a 12V ignition wire that is live while the engine is running.  Powering a gauge can be difficult.  We recommend using our MACSBOOST powersport battery mount switch to control master power to the ski and gauge.

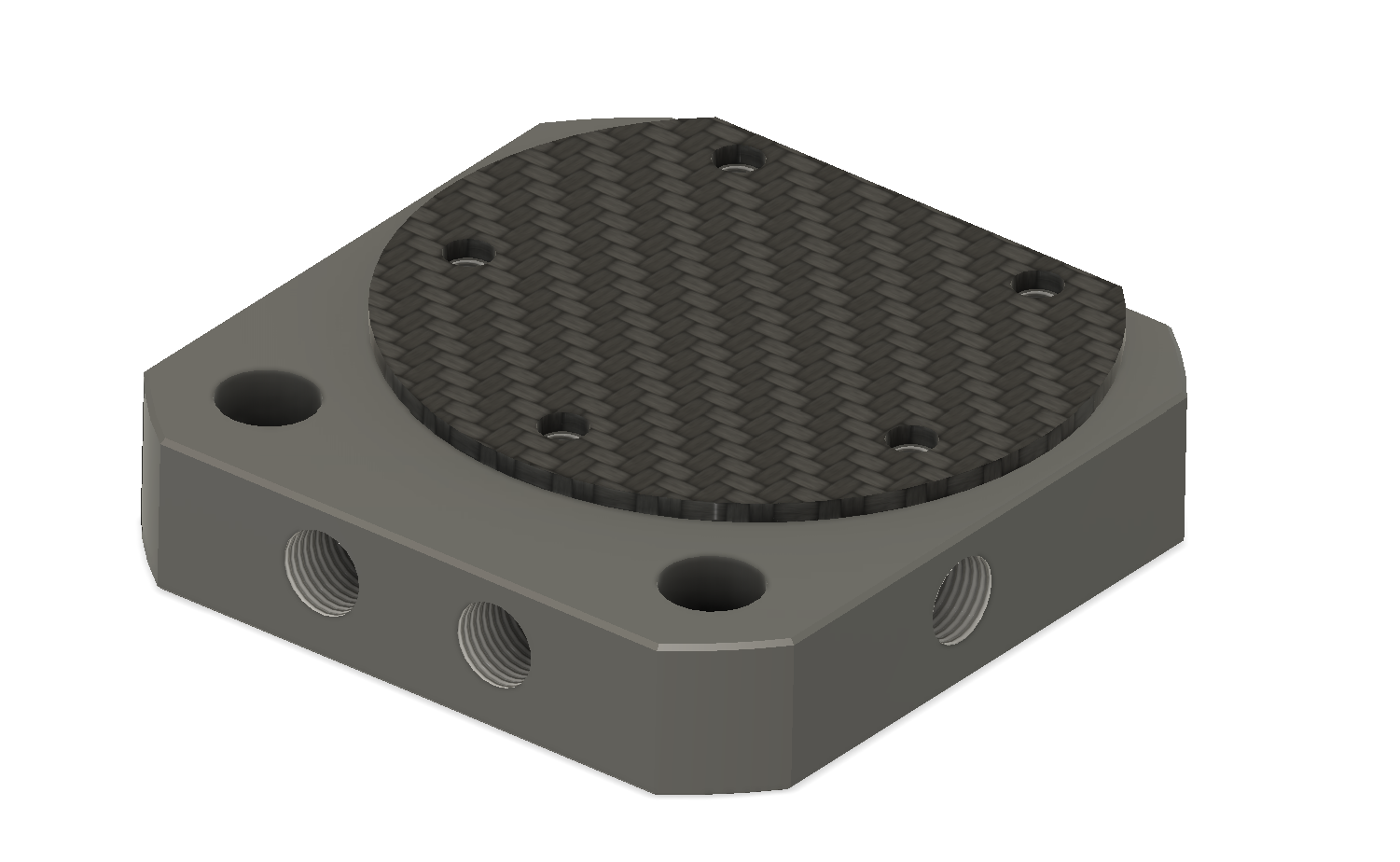

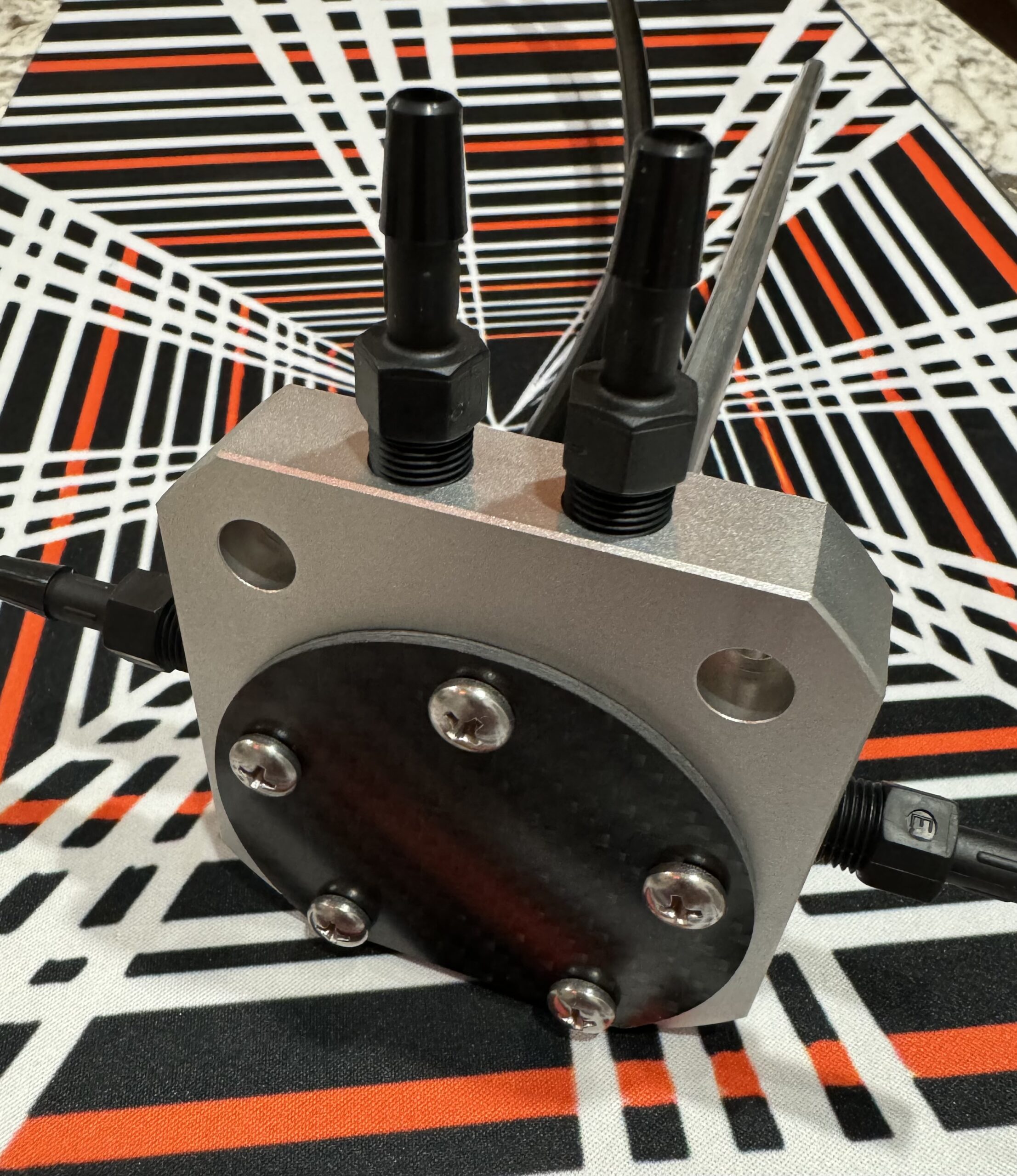

If no sender is desired it comes with a carbon fiber blockoff.  (no other fuel pickup can boast this claim.  we checked)  This makes this the best looking fuel pickup you can buy.

Low profile design hugs the tank.

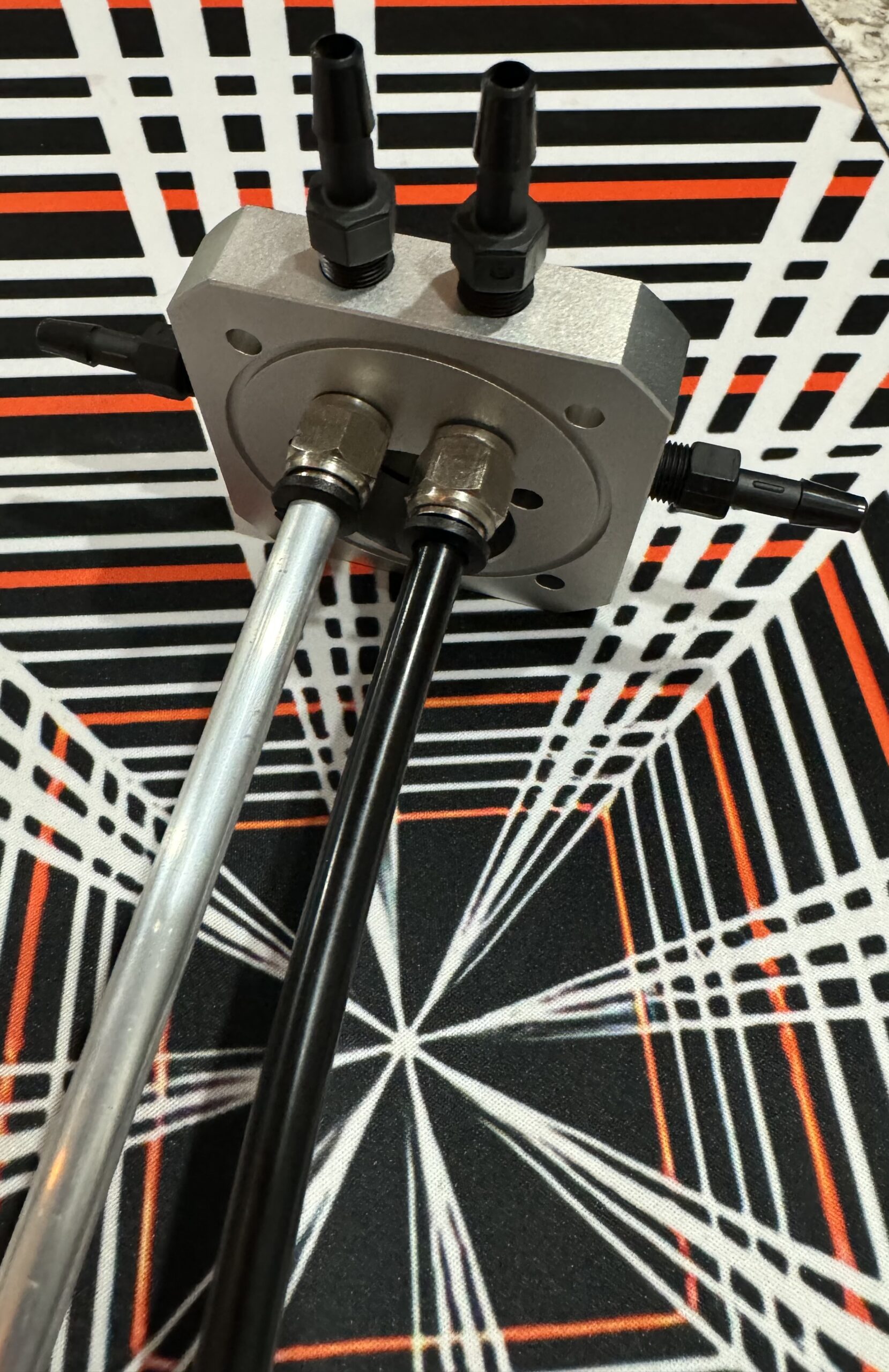

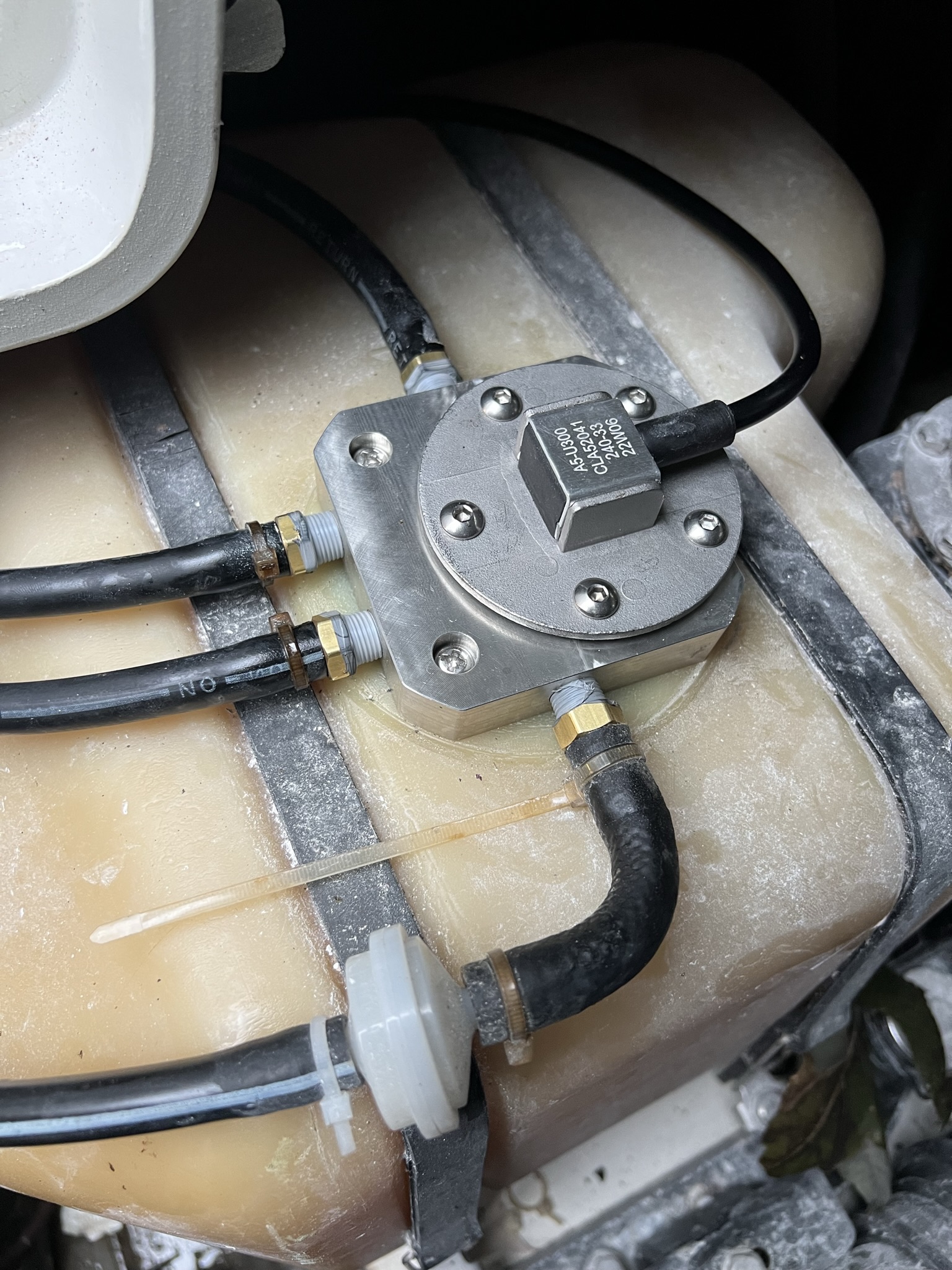

Side ports are return and vent.  Two fuel ports allow for a main and a reserve or two mains.  Minimal restriction allows for high performance applications. 750, pipe, big bore, 1200, etc.

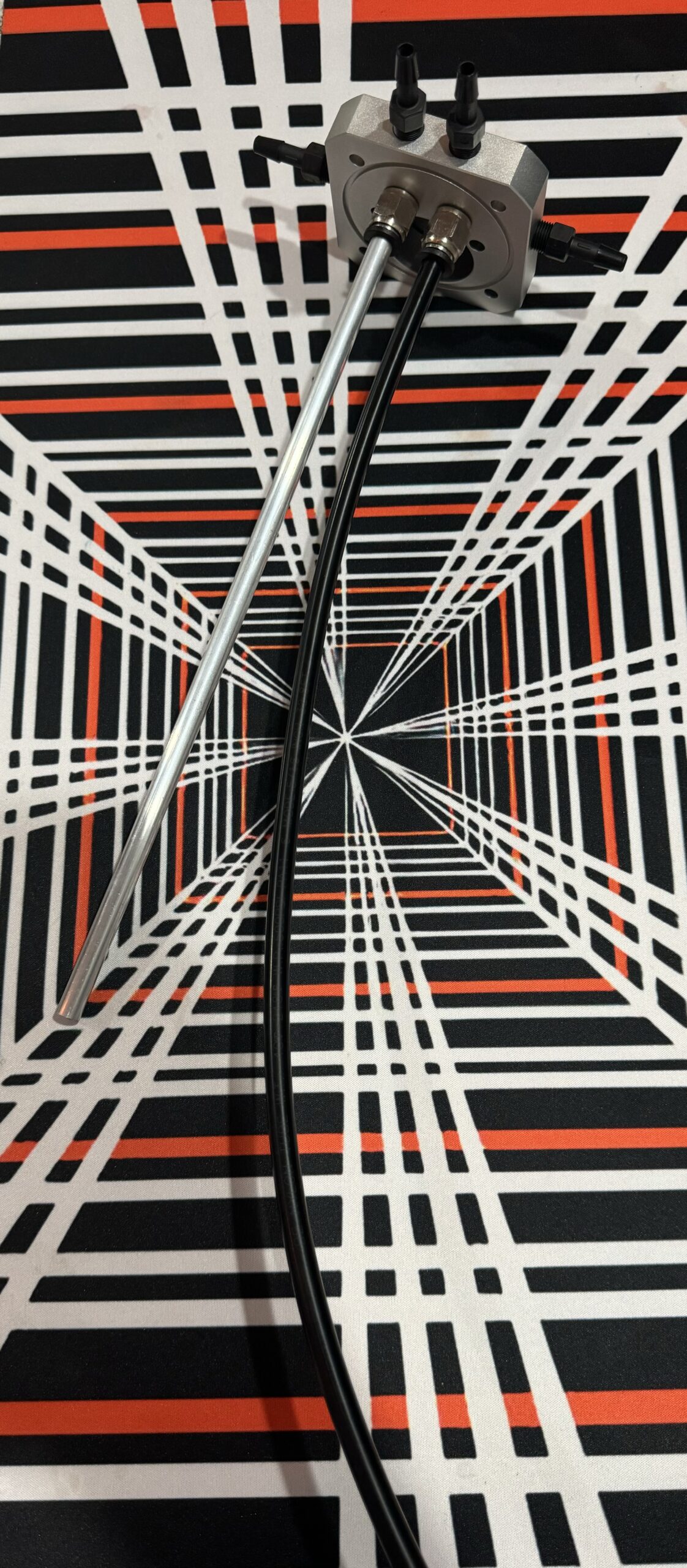

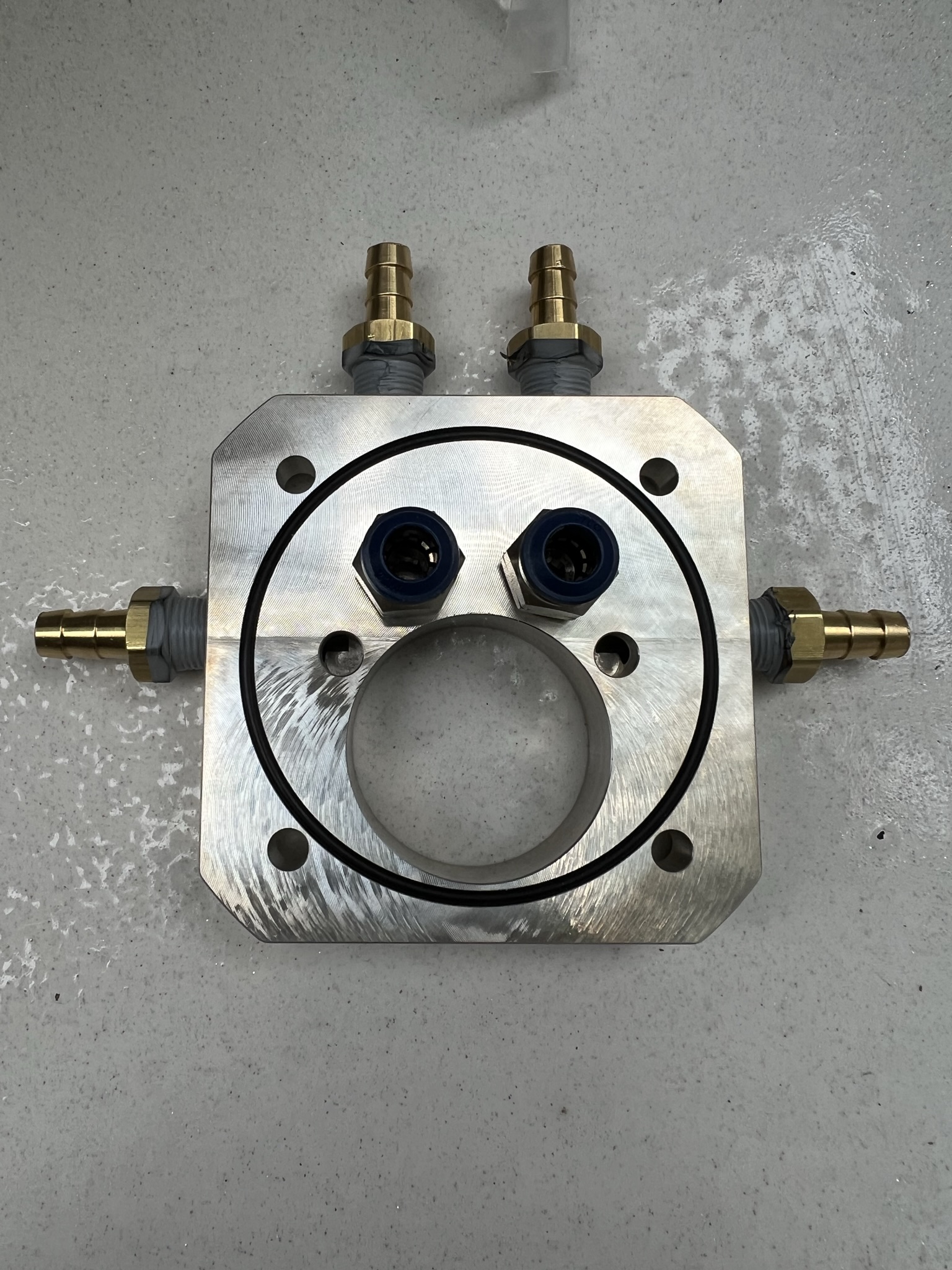

The fuel pickup adapter cleverly uses push to connect fittings so you can use your choice of 5/16″ OD brass or poly tubing.  Tune the reserve capacity as desired by picking any length pickup you wish.  This design will universally fit any depth tank or custom tank setup.  The kit includes all necessary screws, fittings, orings, one alum reserve pickup tube and one flexible on pickup tube.

-Compatible with 650SC SUPERCHICKEN
-Compatible with 800SXR
-Compatible with 650TS
Kawasaki part number of the plastic version 49019-3718 49019-0036

Kawasaki part number of the metal version 49019-3710

Kawasaki Genuine 1992-1999 Jet Ski Fuel Filter See Fitments Below 49019-3710

2001 Kawasaki PWC 900 STX (JT900-C1)
2002 Kawasaki PWC 1200 STX-R (JT1200-A1)
2002 Kawasaki PWC 900 STX (JT900-C2)
2003 Kawasaki PWC 1200 STX-R (JT1200-A2)
2003 Kawasaki PWC 800 SX-R (JS800-A1)
2003 Kawasaki PWC 900 STX (JT900-D1)
2004 Kawasaki PWC 1200 STX-R (JT1200-C1)
2004 Kawasaki PWC 800 SX-R (JS800-A2)
2004 Kawasaki PWC 900 STX (JT900-E1)
2005 Kawasaki PWC 1200 STX-R (JT1200-C2)
2005 Kawasaki PWC 800 SX-R (JS800-A3)
2005 Kawasaki PWC 900 STX (JT900-E2)
2006 Kawasaki PWC 800 SX-R (JS800A6F)
2006 Kawasaki PWC 900 STX (JT1500A6F)
2007 Kawasaki PWC 800 SX-R (JS800A7F)
2008 Kawasaki PWC 800 SX-R (JS800A8F)
2009 Kawasaki PWC 800 SX-R (JS800A9F)
2010 Kawasaki PWC 800 SX-R (JS800AAF)
2011 Kawasaki PWC 800 SX-R (JS800ABF)

1997	Kawasaki	Jet Ski 750 SS	JH750
1996	Kawasaki	Jet Ski 750 SS	JH750
1995	Kawasaki	Jet Ski 750 SS	JH750
1994	Kawasaki	Jet Ski 750 SS	JH750
1993	Kawasaki	Jet Ski 750 SS	JH750
1992	Kawasaki	Jet Ski 750 SS	JH750
1998	Kawasaki	Jet Ski 750 STX	JT750
1998	Kawasaki	Jet Ski 900 STX	JT900
1997	Kawasaki	Jet Ski 900 STX	JT900
1995	Kawasaki	Jet Ski ST	JT750
1994	Kawasaki	Jet Ski ST	JT750
1997	Kawasaki	Jet Ski STS	JT750
1996	Kawasaki	Jet Ski STS	JT750
1995	Kawasaki	Jet Ski STS	JT750
1997	Kawasaki	Jet Ski Super Sport XI	JH750
1996	Kawasaki	Jet Ski Super Sport XI	JH750
1995	Kawasaki	Jet Ski Super Sport XI	JH750
1994	Kawasaki	Jet Ski Super Sport XI	JH750
1993	Kawasaki	Jet Ski Super Sport XI	JH750
1994	Kawasaki	Jet Ski XiR	JH750

1999	Kawasaki	Jet Ski Xi Sport	JH750
1998	Kawasaki	Jet Ski Xi Sport	JH750

Though this cool part is mostly self explanatory, it does include tech support.  Feel free to call or email us with your questions and we will be happy to share our suggestions as far as adding a gauge or no gauge to your chicken.  We’ve done the R&D so you don’t have to waste any time.  If you call takes longer than 5 minutes, we might ask you purchase another fuel pickup to pay for our trouble. 😉

-cheers, MACSBOOST
